AS06004PS-R Datasheet(PDF) 1 Page - PUI audio inc.

Part # AS06004PS-R
Description  ALL DIMENSIONS ARE IN MILLIMETERS
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  PUIAUDIO [PUI audio inc.]
Direct Link  http://www.puiaudio.com/
Logo PUIAUDIO - PUI audio inc.

AS06004PS-R Datasheet(HTML) 1 Page - PUI audio inc.

  AS06004PS-R Datasheet HTML 1Page - PUI audio inc. AS06004PS-R Datasheet HTML 2Page - PUI audio inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 2 page
background image

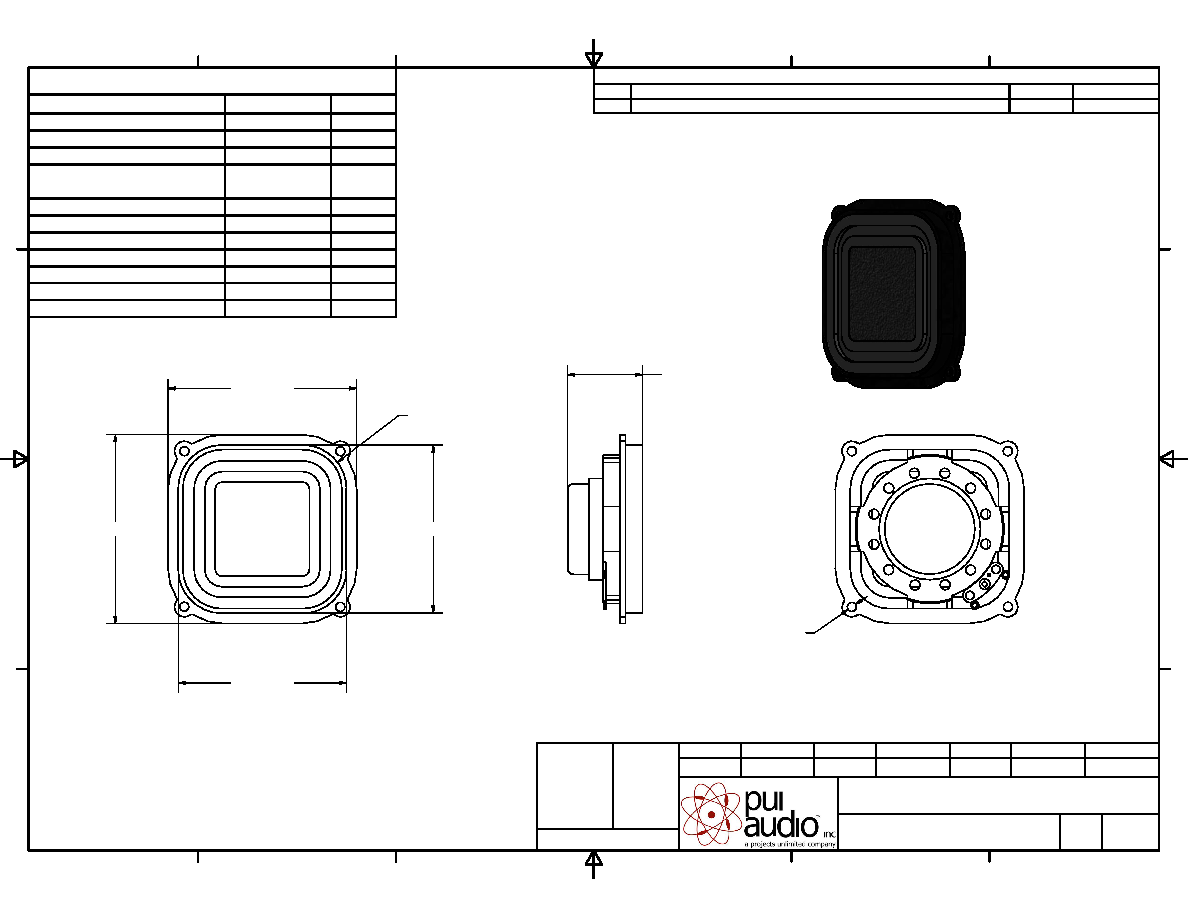

Speaker
AS06004PS-R
M.V.
M.V.
B.R.
5/19/2016
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
5/19/2016
Date
5/19/2016
Date
5/19/2016
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE 0.5 AND
ANGLES ARE 3 .
AS06004PS-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
5/19/2016
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
10
W
MAX INPUT POWER
15
W
IMPEDANCE
4 15%
OHM
OUTPUT SPL @ 1W/0.1M
(AT 110, 1,000, and 6,000 Hz)
99 3
dBA
RESONANT FREQUENCY
160 20%
Hz
FREQUENCY RANGE
Fo~ 18,000
Hz
HOUSING MATERIAL
ABS
-
CONE MATERIAL
PAPER
-
MAGNET MATERIAL
NdFeB
-
OPERATING TEMPERATURE
-20~ +60
C
WEIGHT
85
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
26.5
0.5
66.8
0.3
66.8
0.3
59.5
0.3
59.5
0.3
3.2 (4)
