P9225-R Datasheet
© 2018 Integrated Device Technology, Inc.
13
November 12, 2018

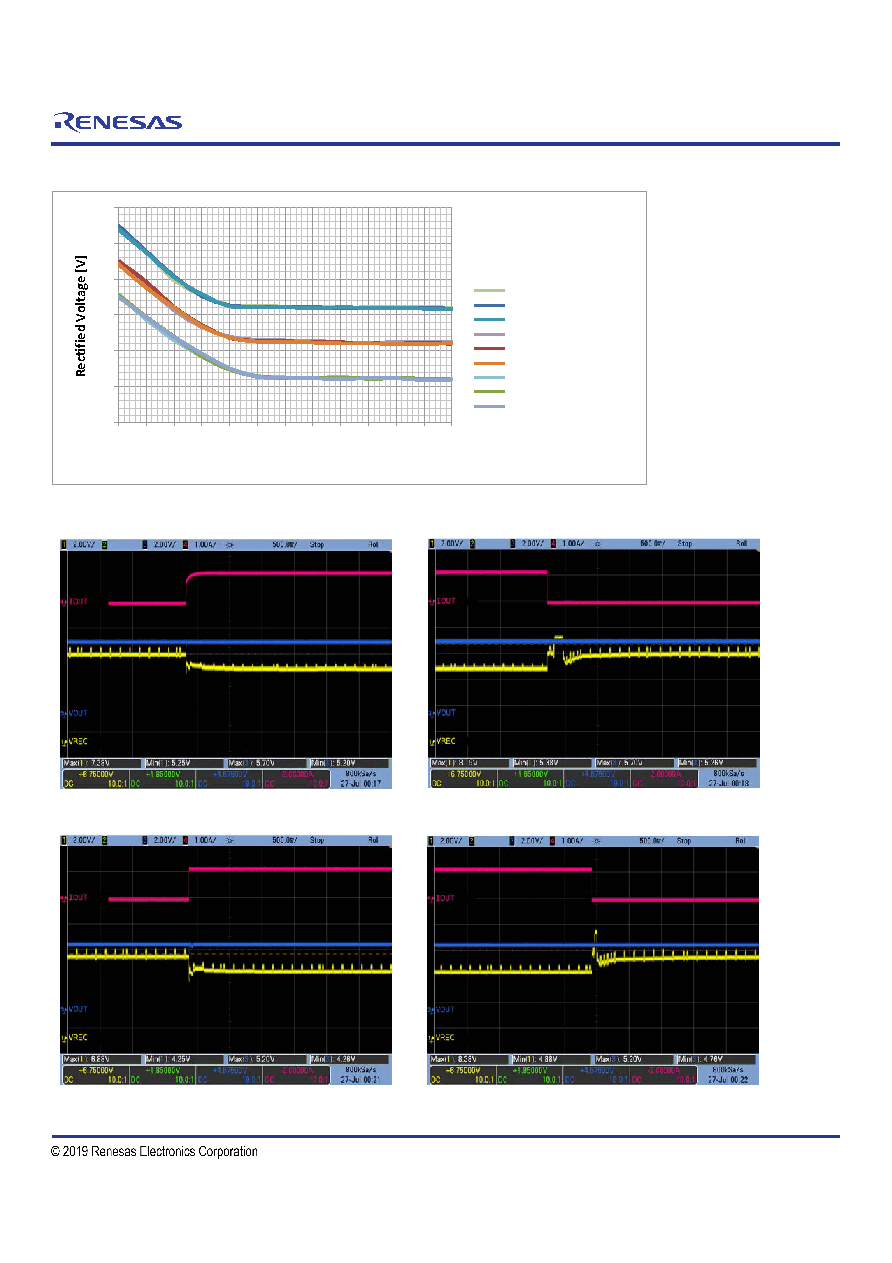

Figure 8. Rectified Voltage vs Output Load
Figure 9. Load Transient: VOUT = 5.5V, 0A  1.2A Figure 10. Load Transient: VOUT = 5.5V, 1.2A  0A
Figure 11. Load Transient: VOUT = 5V, 0A  1.2A
Figure 12. Load Transient: VOUT = 5V, 1.2A  0A
4
4.5
5
5.5
6
6.5
7
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
Output Load [A]
Vout = 5.5V [WPC mode] Ta=0C
Vout = 5.5V [WPC mode] Ta=26C
Vout = 5.5V [WPC mode] Ta=85C
Vout = 5V [WPC mode] Ta=0C
Vout = 5V [WPC mode] Ta=26C
Vout = 5V [WPC mode] Ta=85C
Vout = 4.5V [WPC mode] Ta=0C
Vout = 4.5V [WPC mode] Ta=26C
Vout = 4.5V [WPC mode] Ta=85C
