REF-M1-R-E Datasheet(PDF) 3 Page - PATLITE CORPORATION.

Part # REF-M1-R-E
Description  Explosion-proof Beacon
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  PATLITE [PATLITE CORPORATION.]
Direct Link  https://www.patlite.com/
Logo PATLITE - PATLITE CORPORATION.

REF-M1-R-E Datasheet(HTML) 3 Page - PATLITE CORPORATION.

  REF-M1-R-E Datasheet HTML 1Page - PATLITE CORPORATION. REF-M1-R-E Datasheet HTML 2Page - PATLITE CORPORATION. REF-M1-R-E Datasheet HTML 3Page - PATLITE CORPORATION. REF-M1-R-E Datasheet HTML 4Page - PATLITE CORPORATION.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image

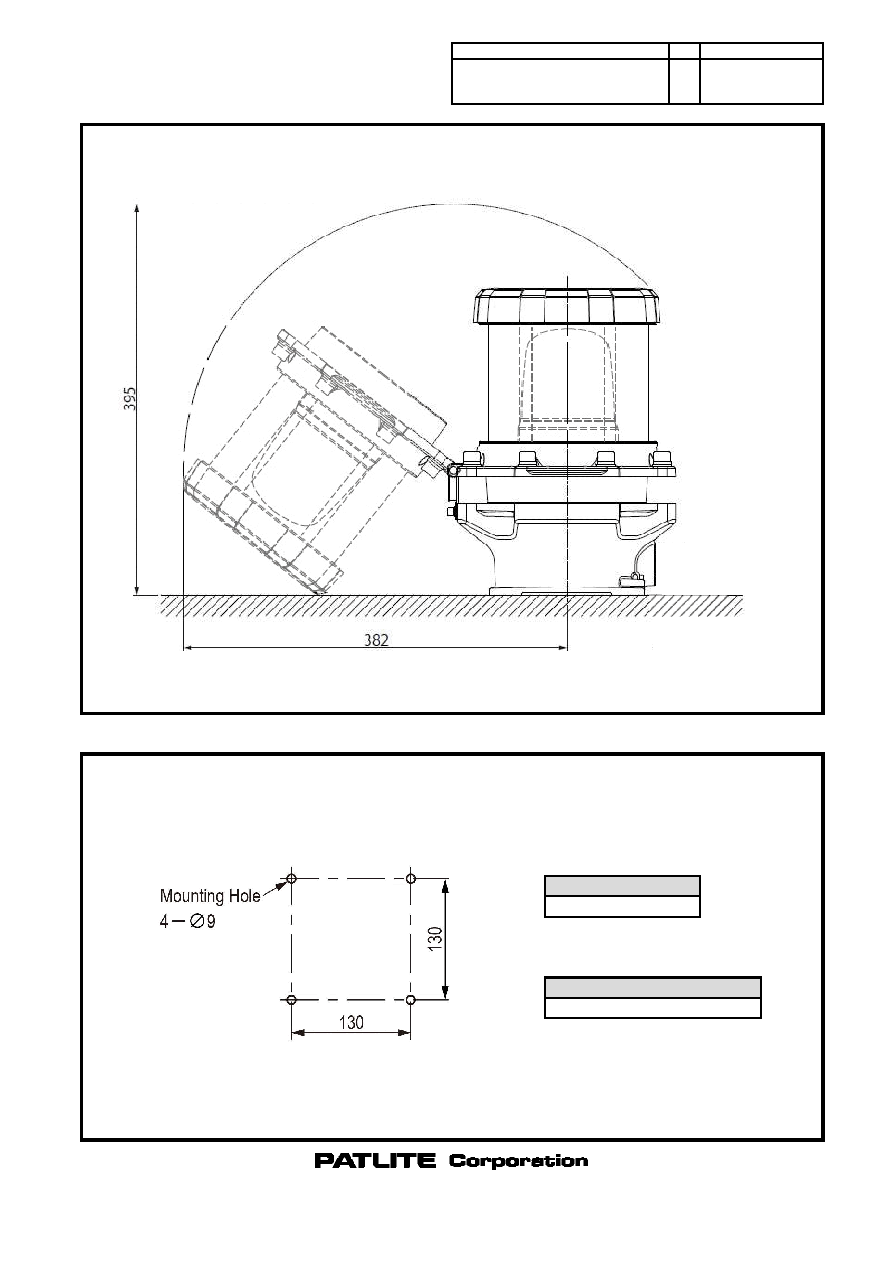

3.2 Required Space Drawing when Wiring
[mm]
[mm]
※
Bolt/Nut not Included.
Recommended Tightening Torque
12.3N・m
[4.Mounting Dimensional Drawing]
Bolt/Nut
M8 × 4 places
Drawing No.
Rev.
Page
E
3/4
REF-M1-E-W18
