REF-M2-R-E Datasheet(PDF) 4 Page - PATLITE CORPORATION.

Part # REF-M2-R-E
Description  Explosion-proof Beacon
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  PATLITE [PATLITE CORPORATION.]
Direct Link  https://www.patlite.com/
Logo PATLITE - PATLITE CORPORATION.

REF-M2-R-E Datasheet(HTML) 4 Page - PATLITE CORPORATION.

  REF-M2-R-E Datasheet HTML 1Page - PATLITE CORPORATION. REF-M2-R-E Datasheet HTML 2Page - PATLITE CORPORATION. REF-M2-R-E Datasheet HTML 3Page - PATLITE CORPORATION. REF-M2-R-E Datasheet HTML 4Page - PATLITE CORPORATION.
Zoom Inzoom in Zoom Outzoom out
 4 / 4 page
background image
■REF-M1
■REF-M2
■Flash Pattern
■
Terminal Conformity Cable
■
Cable gland
Certified Ex cable gland (Marking: Ex db ⅡC Gb)
shall be used to equipment and installed in
accordance with EN/IEC 60079-14.

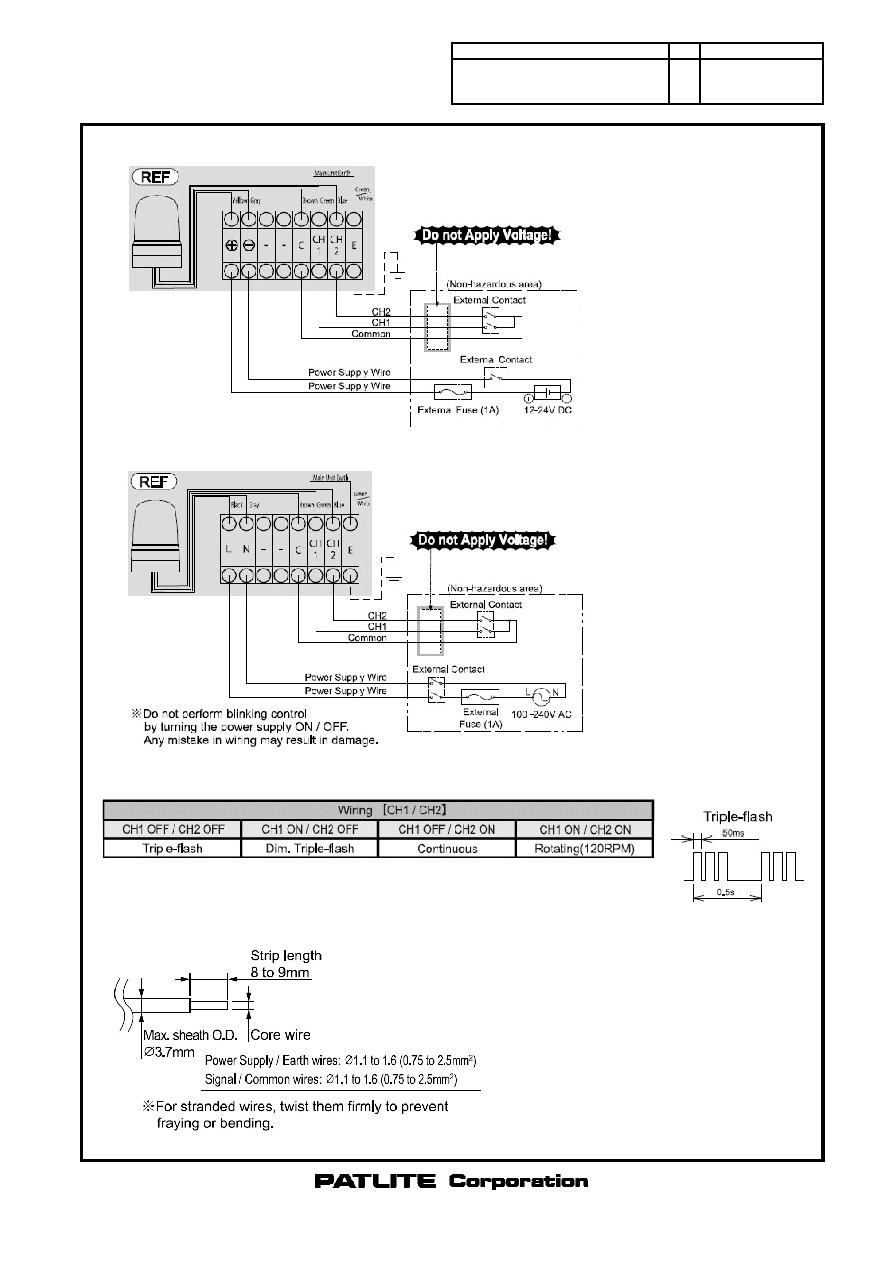

[5.Wiring Drawing]
Drawing No.
Rev.
Page
E
-
: Empty
-
: Empty
C : Common
CH1 : CH1
CH2 : CH2
E : Earth Ground
-
: Empty
-
: Empty
C : Common
CH1 : CH1
CH2 : CH2
E : Earth Ground
4/4
REF-M1-E-W18



Html Pages

1 2 3 4
