2SD874-R Datasheet(PDF) 1 Page - Micro Commercial Components |
|
|
|||||||||||||||||||||||||||||
2SD874-R Datasheet(HTML) 1 Page - Micro Commercial Components |
|
|

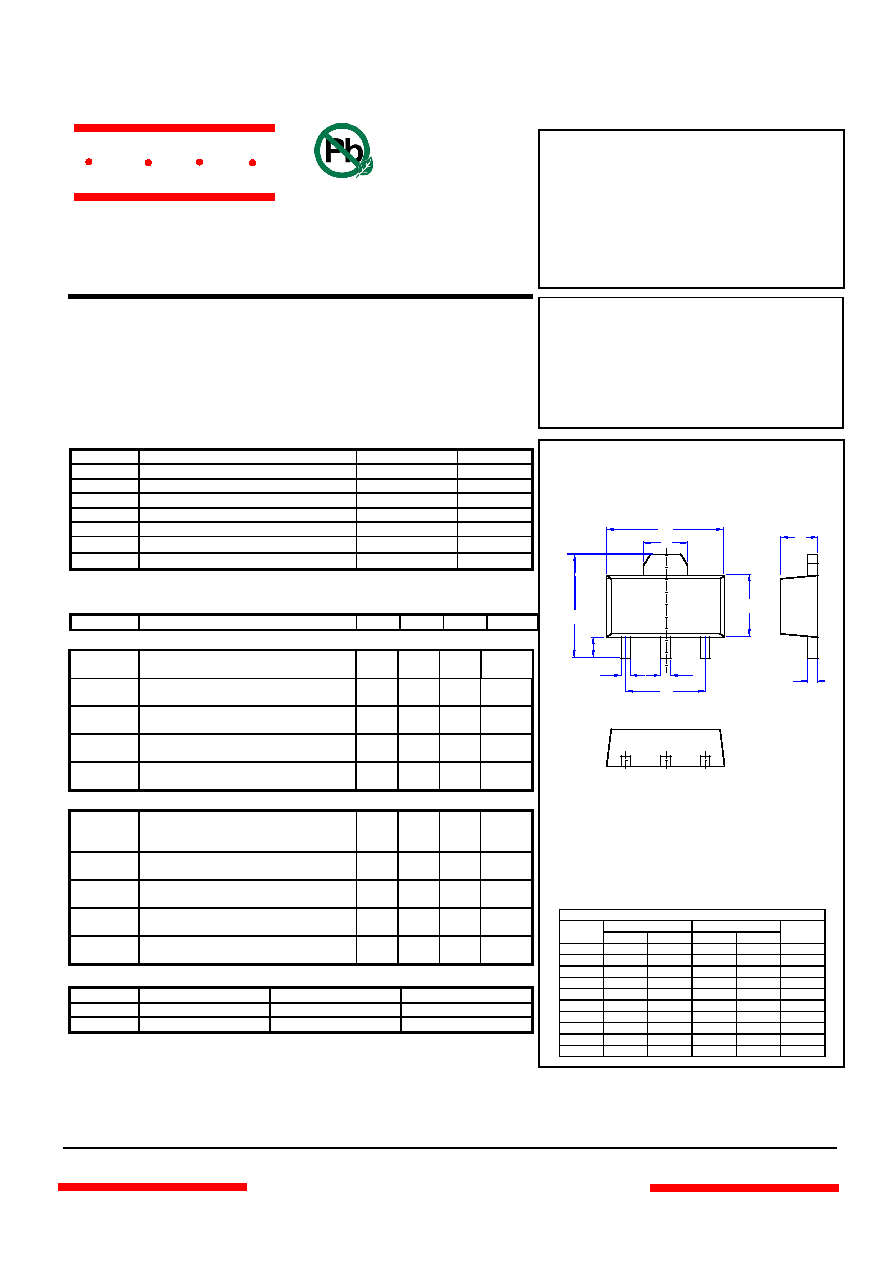

1 / 2 page  2SD874-Q NPN Silicon Power Transistors Features • Power amplifier applications Maximum Ratings Symbol Rating Rating Unit VCEO Collector-Emitter Voltage 25 V VCBO Collector-Base Voltage 30 V VEBO Emitter-Base Voltage 5 V IC Collector Current 1 A PC Collector power dissipation 500 mW TJ Junction Temperature -55 to +150 TSTG Storage Temperature -55 to +150 Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Min Type Max Units OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage (IC=2mAdc, IB=0) 25 --- --- Vdc V(BR)CBO Collector-Base Breakdown Voltage (IC=10uAdc, IE=0) 30 --- --- Vdc V(BR)EBO Emitter-Base Breakdown Voltage (IE=10uAdc, IC=0) 5 --- --- Vdc ICBO Collector-Base Cutoff Current (VCB=20Vdc,IE=0) --- --- 0.1 uAdc IEBO Emitter-Base Cutoff Current (VEB=4Vdc, IC=0) --- --- 0.1 uAdc ON CHARACTERISTICS hFE Forward Current Transfer ratio (IC=500mAdc, VCE=10Vdc) (IC=1.0Adc, VCE=5Vdc) 85 50 --- --- 340 --- --- --- VCE(sat) Collector-Emitter Saturation Voltage (IC=500mAdc, IB=50mAdc) --- --- 0.4 Vdc VBE(sat) Base-Emitter Saturation Voltage (IC=500mAdc,IB=50mAdc) --- --- 1.2 Vdc fT Transistor Frequency (IC=50mAdc, VCE=10Vdc, f=200MHz) --- 200 --- MHz Cob Collector Output Capacitance (VCB=10Vdc, IE=0, f=1MHz) --- 20 --- pF Classification OF hFE(1) Rank Q R S Range 85-170 120-240 170-340 Marking ZQ ZR ZS 25 SOT-89 1. Base 2. Collector 3. Emitter Revision: A 2011/01/01 omponents 20736 Marilla Street Chatsworth !"# $% !"# MCC TM Micro Commercial Components www.mccsemi.com 1 of 2 B A E D G H F K J C 1 2 3 2SD874-R 2SD874-S • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 |
