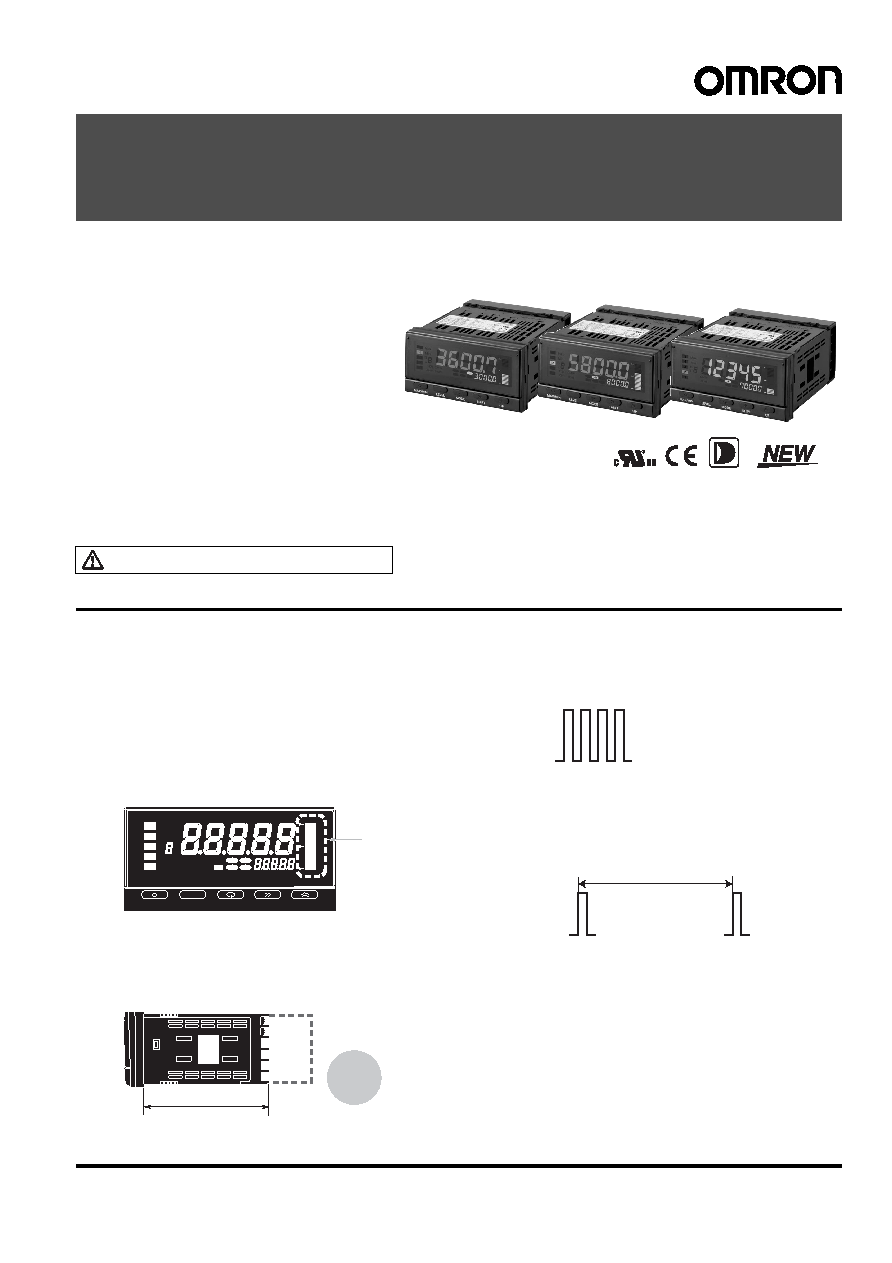

1 / 32 page  Digital Indicators K3HB Series (Pulse Input Series) 1 Digital Indicators K3HB Series (Pulse Input Series) The K3HB Series has been made complete with the addition of Digital Signal Input Models. Features Red-Green Display Allows Easy Recognition of Judgment Results The measurement value display can be set to switch between red and green in accordance with the status of comparative outputs. This means that the status can be easily seen at a distance. Position Meter Enables Easy Monitoring of Operating Status Trends The present value with respect to the measurement or display range (full scale) can be viewed on a bar display. The operating status can be grasped intuitively, allowing easy judgment of levels and threshold values. Short Body with Depth of Only 95 mm (from Behind the Front Panel) A short body of only 95 mm (see note) contributes to the development of slimmer and smaller control panels and installations. Note: Depth of DeviceNet models is 97 mm. 50 kHz High-speed Pulse Measurement (K3HB-R) Supports high-speed pulse measurement (up to 50 kHz) of rotary encoders or any ON/OFF pulse signal, which enables rotational measurement of objects rotating at high speeds. Note: No-voltage contacts of up to 30 Hz are supported. Measurement of Wide Range of Pulse Interval Times (K3HB-P) Measures and displays the results of the pulse interval between two points. The pulse interval measurement range is broad, from 10 ms to 3,200 s. High-speed Up/Down Counting Pulse Measurement (K3HB-C) Perfect for high-speed measurement of rotary encoders or any ON/OFF pulse signals. Cumulative pulse input is 50 kHz, quadrature pulse inputs are 25 kHz, and up/down pulse inputs are 30 kHz. Note: No-voltage contacts of up to 30 Hz are supported. UP SHIFT MODE LEVEL CMW Max B L Min Hold MAX/MIN HH H TLL L Position meter HH H P L LL Note: This function is different from the single-LED display of the K3HB-C. Depth: 95 mm (See note.) 27% shorter than earlier models (The depth is 100 mm when mounted to the terminal cover.) 50 kHz 50 kHz 10 ms to 3200 s • Easy recognition of judgment results using two-color display that can be switched between red and green. • Equipped with a position meter for monitoring operating status trends. • External event inputs allows using various measurement and discrimination applications. • Series expanded to include DeviceNet models. • Short body with depth of only 95 mm (see note) (from behind the front panel). • UL certification (Certification Mark License). • CE Marking conformance by third party assessment body. • Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66). Note: Depth of 97 mm for DeviceNet models. Refer to Common Precautions on page 30. |
