Wireless Power Receiver

for ≤ 3W Applications

P9027LP-R

Datasheet

1

April 28, 2016

Description

The P9027LP-R is a highly integrated, low Bill-of-Materials (BOM)

count, single-chip receiver targeted for 0.5 to 3 W applications.

Using the magnetic inductive charging technology, it converts an

AC power signal from a resonant tank into a regulated

programmable DC output voltage ranging from 4.5 to 6.0 Volts.

The receiver has a patented internal scheme for communication

and modulation using zero external components. As a result, it

provides an extremely small application area. Together with the

P9235A-R transmitter, the P9027LP-R is a complete wireless

power system solution.

The P9027LP-R is available in a WLCSP-40 package (2.24 mm ×

3.62 mm, 0.4 mm pitch), and it is rated for 0 to 85°C ambient

operating temperature range.

Typical Applications



Smart Watches



Headsets



Digital Cameras



Portable Medical Applications

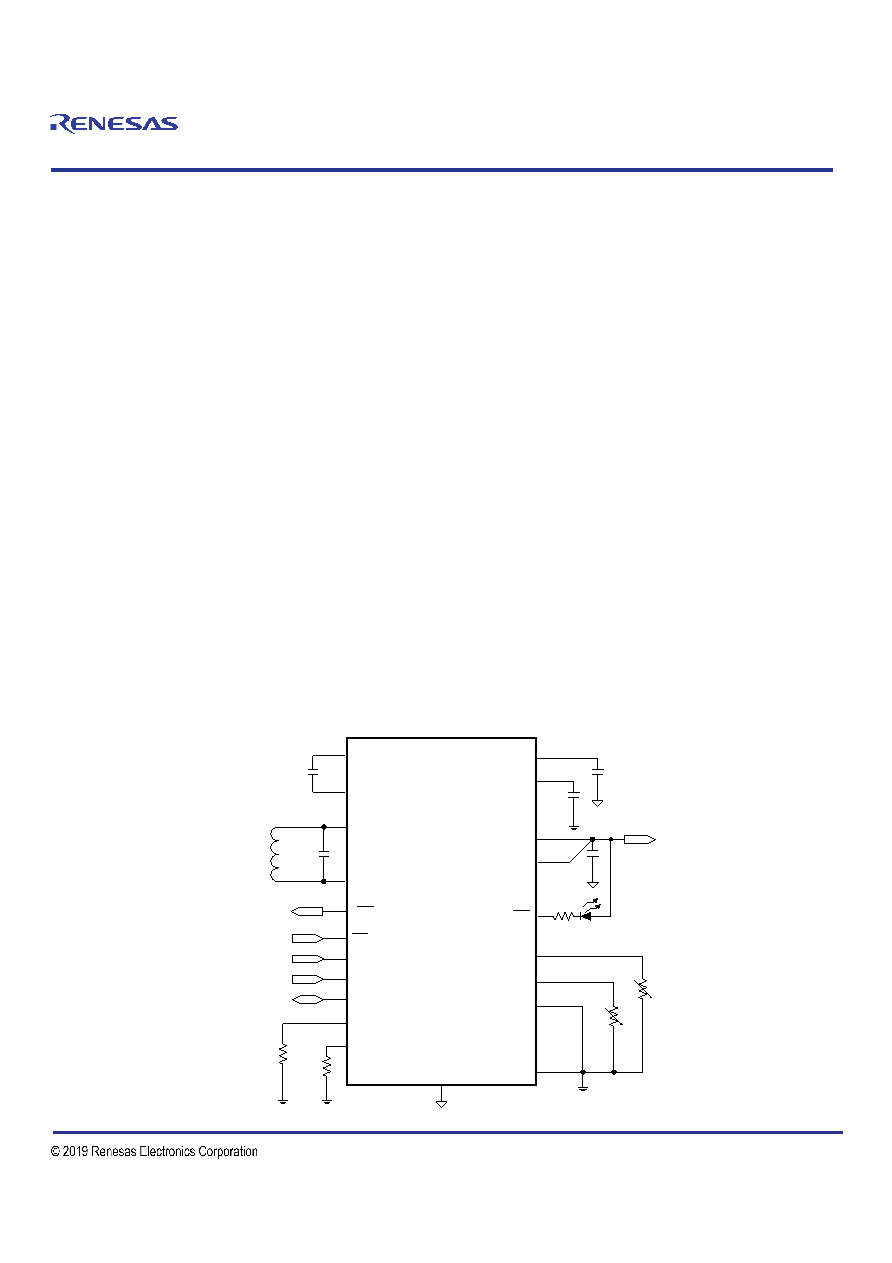

Figure 1. Typical Applications Circuit

Features



Small solution area: ~32mm2



Patented over-voltage protection clamp eliminating external

capacitors



Optimized for 0.5 to 3 W applications



Integrated low dropout tracking LDO



Low synchronous rectifier RDS(ON) for high efficiency



Programmable rectifier voltage for optimal transient response

versus efficiency



Integrated charge pump for startup under weak coupling or

poor alignment



Programmable output voltage: 4.5 to 6.0 V



Programmable current limit



Open-drain interrupt flag



Power transfer LED indicator



Dedicated remote temperature sensing



Active low enable pin for electrical on/off



I2C interface



0 to +85°C ambient operating temperature range



WLCSP 2.24 mm X 3.62 mm, 40 pin package

P9027LP-R

LX1

VRECT

CRECT

R1

AGND

SCL

SDA

SCL

SDA

Cd

OUT

COUT

VOUT=5V

Chip Enable

CFLY

CFLY1

PGND

VHDR

VSET

End of Charge

LRX

Interupt

EOC

OUTSNS

CFLY2

LX2

VDD

CVDD

TS1

TS2

RTS1

RTS2

INT

EN

RHDR

IOC

RIOC

ACT
