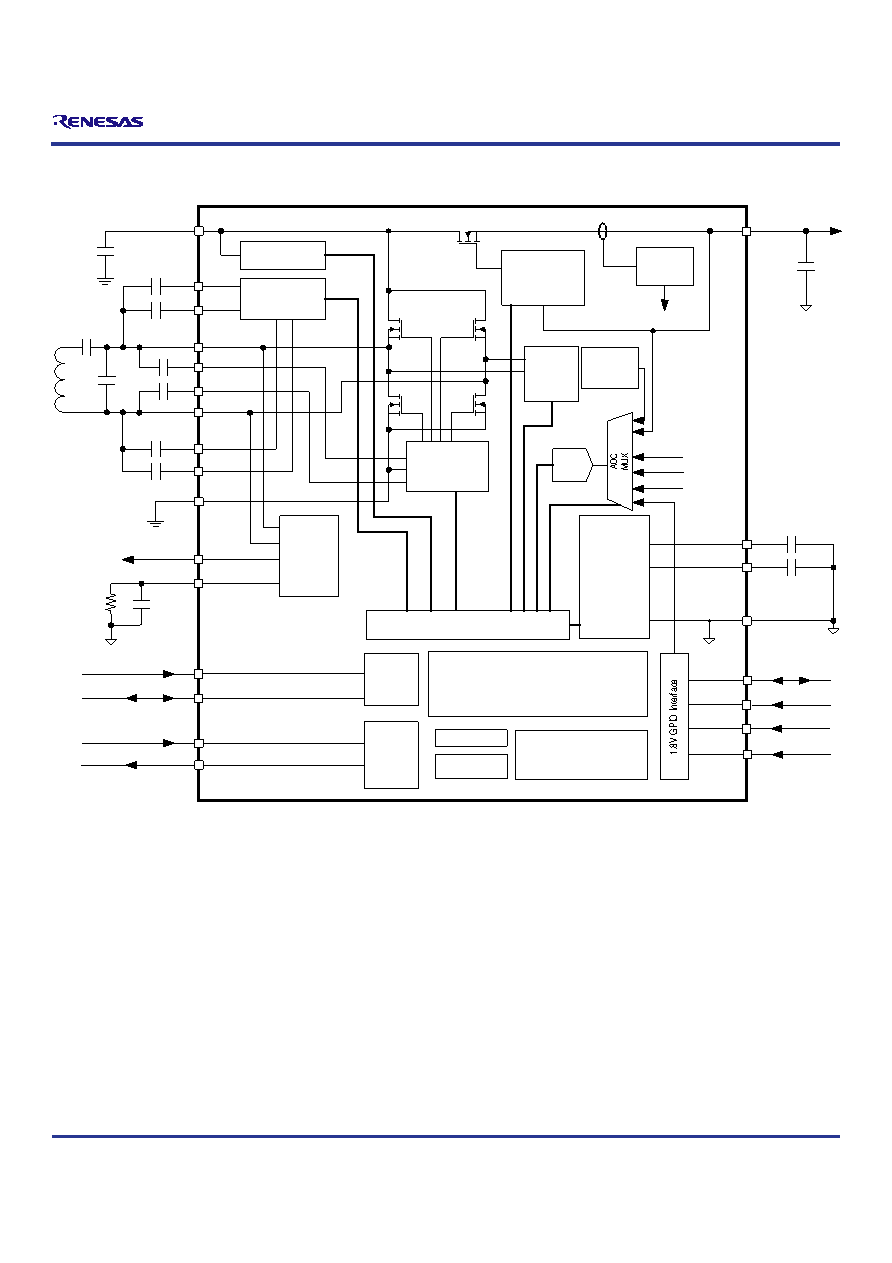

2 / 58 page  P9222-R/RN Datasheet © 2019-2022 Renesas Electronics Corporation 2 May 5, 2022 Figure 2. P9222-R/RN Block and Application Diagram LRX CCM1 CM1 AC1 AC2 CMA CCMA Communication Drivers Synchronous Rectifier Control Logic LDO Driver & Control ARM M0 Microprocessor OD0 OD1 GP1 GP2 Output Output Current Sense COUTPUT GPOD Interface 12 Bit ADC PGND Analog to Digital Interface IOUTSNS IOUTSNS Internal Temperature Sense VRECT /EN /INT Timers & Counters 16 kB OTP 2kB RAM Frequency Detector Analog Core: Bias OSC LDO 1.8V LDO 5V Charge Pumps LDO1P8 CLDO1P8 CBST1 BST1 BST2 CBST2 GP0 CCM2 CCMB CM2 CMB VRECT VOUT OVP Protection LDO5P0 CLDO5P0 SCL SDA OD2 /EN PGND I2C Interface PDETB PDET_RC CPDET_C RPDET_R Ping Detection Circuitry /INT CVRECT CS CD GPIO0 OD2 |
|
