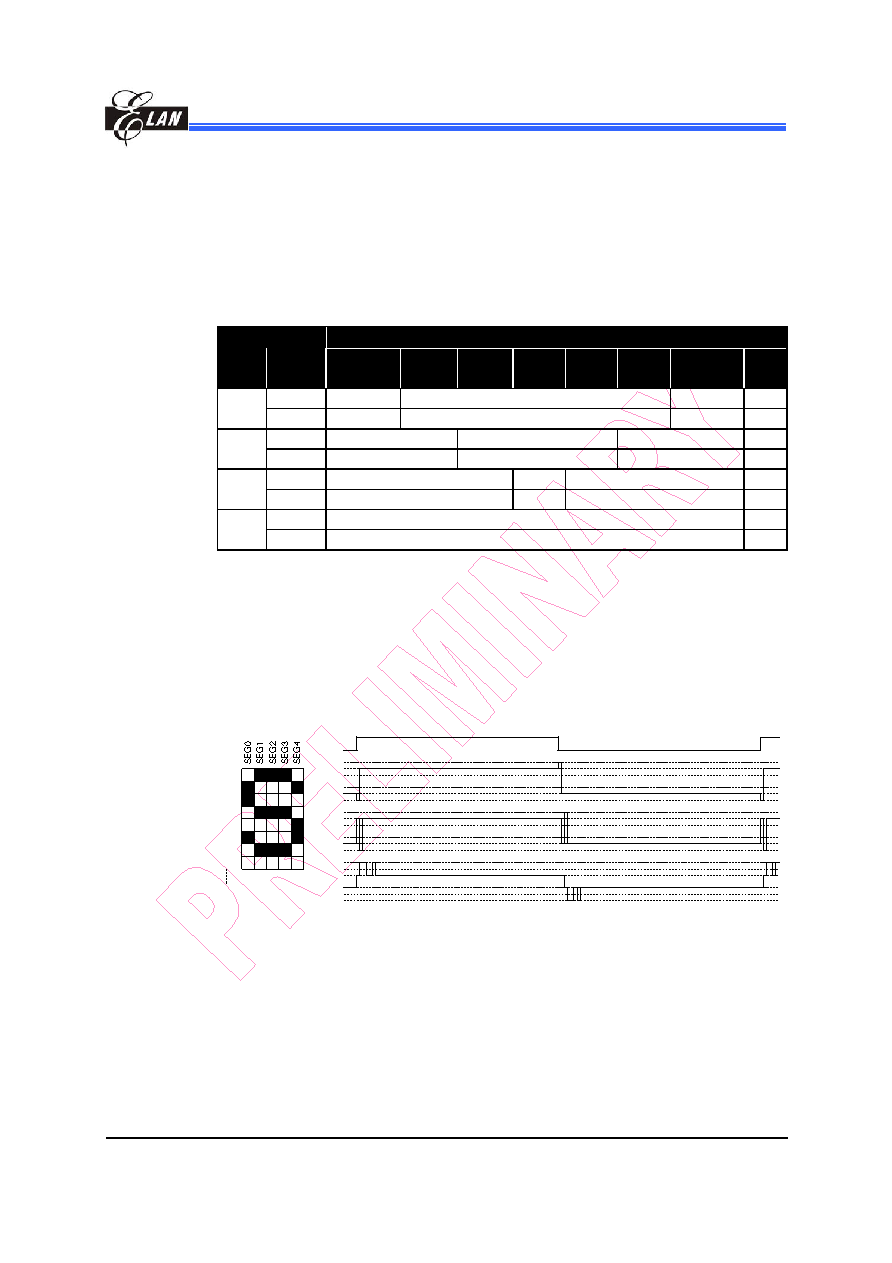

background image
EM62100
65 COM/132 SEG STN LCD Driver
Product Specification (V1.1) 09.13.2005
•••• 19
(This specification is subject to change without further notice)
6.11 Common Control (Shift Register)
6.11.1 Common Number
This circuit controls the relationship between the number of common output and
specified duty ratio. Common output mode select instruction specifies the scanning
direction of the common output pads, as shown in Table 8.
Table 8
Common Output Pads
Duty
Status
COM
[0:15]
COM
[16:23]
COM
[24:26]
COM
[27:36]
COM
[37:39]
COM
[40:47]
COM
[48:63]
COMS
Normal
COM[0:15]
NC
COM[16:31] COMS
1/33
Reverse
COM[31:16]
NC
COM[15:0] COMS
Normal
COM[0:23]
NC
COM[24:47]
COMS
1/49
Reverse
COM[47:24]
NC
COM[23:0]
COMS
Normal
COM[0:26]
NC
COM[27:53]
COMS
1/55
Reverse
COM[53:27]
NC
COM[26:0]
COMS
Normal
COM[0:63]
COMS
1/65
Reverse
COM[63:0]
COMS
6.11.2 LCD Driver Circuits
There are 197 channel drivers that generate four voltage levels for driving the liquid
crystal. The combination of the display data, the COM scan signal, and the M signal
produces the liquid crystal drive voltage output. Figure 7 shows examples of the SEG
and COM output waveform.
COM0
COM1
COM2
COM3
COM4
COM5
COM6
COM7
COM0
COM1
SEG0
COM63
M
Fig. 7
