EM62100
65 COM/132 SEG STN LCD Driver
Product Specification (V1.1) 09.13.2005
•••• 51
(This specification is subject to change without further notice)

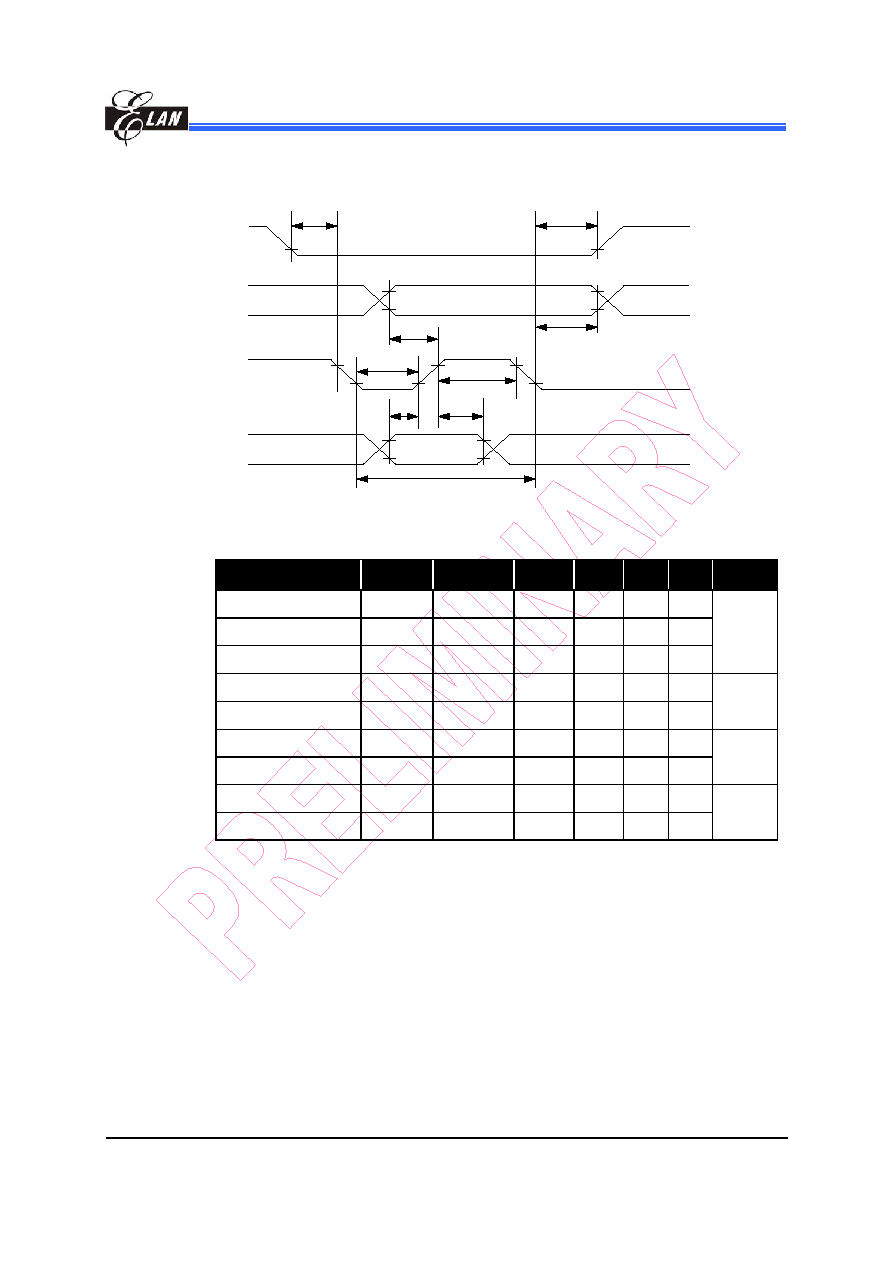

10.3 Serial Interface Characteristics
tCSH
CS1B
(CS2)
RS
SCL
SI
tCSS
tASS
tSLW
tSHW
tDSS
tDHS
tCYCS
tAHS
VDD = 2.7~3.6V, Ta = -40~+85°C . In serial mode, keep M86=L, RDB=H, WRB=H.
Item
Symbol
Condition
Min.
Typ.
Max. Unit Pin Used
Serial Clock Period
tCYCS
120
ns
SCL Pulse “H” Width
tSHW
60
ns
SCL Pulse “L” Width
tSLW
60
ns
SCL
Address Setup Time
tASS
30
ns
Address Hold Time
tAHS
20
ns
RS
Data Setup Time
tDSS
30
ns
Data Hold Time
tDHS
20
ns
SI
CSB-SCL Time
tCSS
20
ns
CSB Hold Time
tCSH
40
ns
CSB, CS2
