ISL8117

FN8666.3

June 4, 2015

Submit Document Feedback

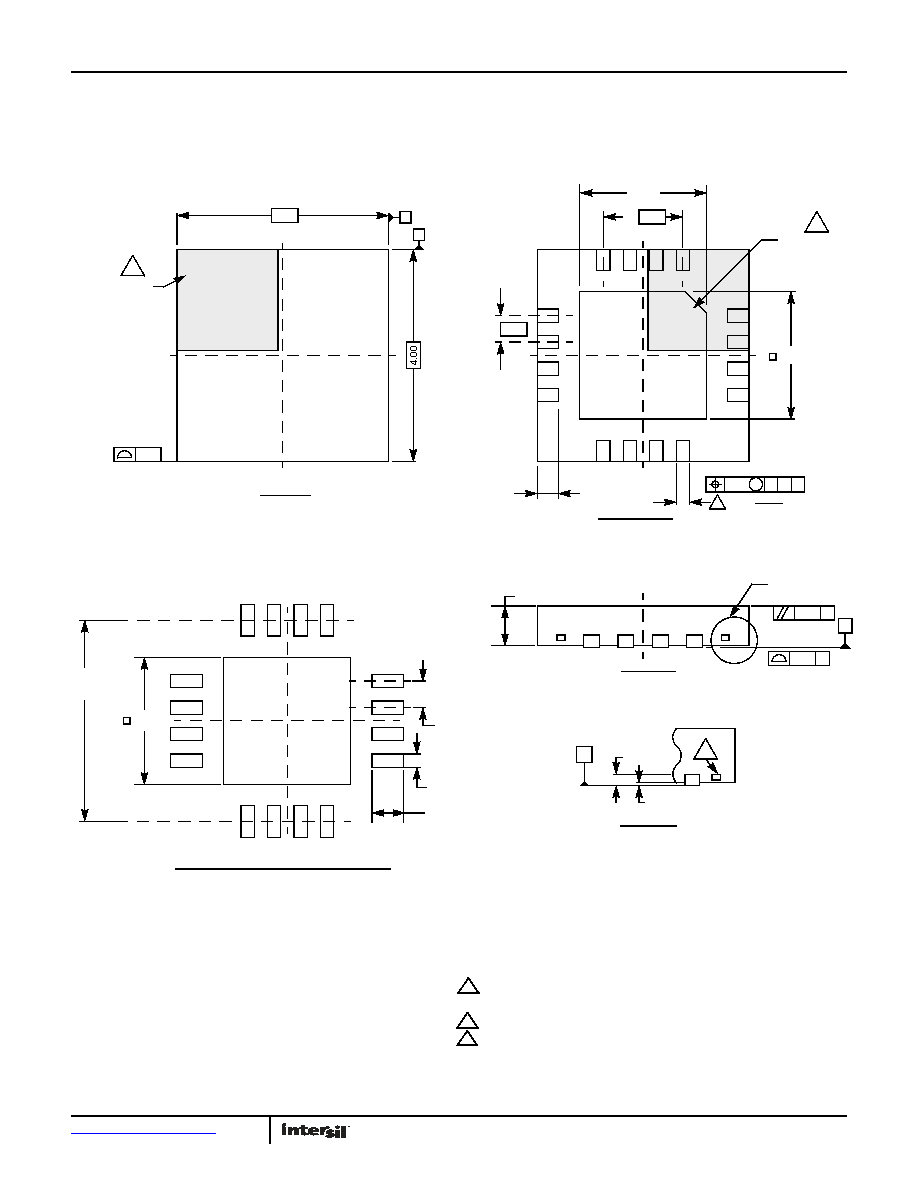

Package Outline Drawing

L16.4x4A

16 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE

Rev 3, 03/15

NOTES:

1. Dimensions are in millimeters.

Dimensions in ( ) for Reference Only.

2. Dimensioning and tolerancing conform to ASME Y14.5m-1994.

3. Unless otherwise specified, tolerance: Decimal ± 0.05

4. Dimension applies to the metallized terminal and is measured

between 0.15mm and 0.30mm from the terminal tip.

5. Tiebar shown (if present) is a non-functional feature.

6. The configuration of the pin #1 identifier is optional, but must be

located within the zone indicated. The pin #1 identifier may be either

a mold or mark feature.

TOP VIEW

INDEX AREA

(4X)

0.15

PIN 1

4.00

SEE

TYPICAL RECOMMENDED LAND PATTERN

0.20 REF

+0.03/-0.02

DETAIL "X"

SIDE VIEW

BOTTOM VIEW

0.08 C

SEATING

0.10 C

+0.05

PIN #1

0.10

0.50

12X

4X 1.50

A B

(

2.40)

(12x 0.50)

(16x 0.25)

(3.8 TYP)

-0.07

0.25

0.90±0.10

2.40

16x 0.40±0.01

(16x 0.60)

INDEX AREA

2.40

DETAIL "X"

PLANE
