ISL73006SLHDEMO2Z Datasheet(PDF) 1 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
ISL73006SLHDEMO2Z Datasheet(HTML) 1 Page - Renesas Technology Corp |
|
|

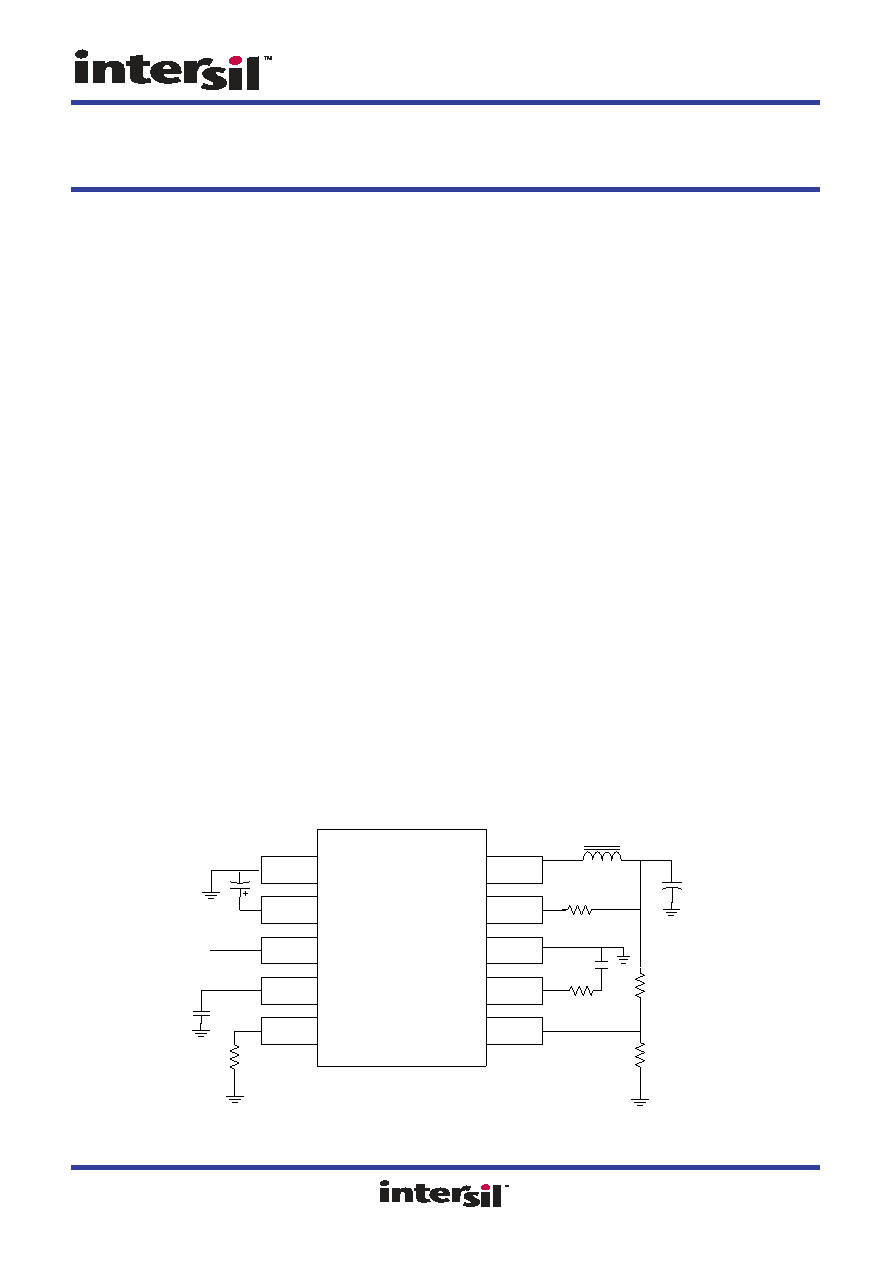

1 / 31 page  Datasheet R34DS0034EU0101 Rev.1.01 Page 1 Mar 13, 2024 © 2023-2024 Renesas Electronics The ISL73006SLH is a radiation hardened Point-of-Load (POL) buck regulator that provides up to 1A of output current capability with an input voltage ranging from 3V to 18V. The device uses constant frequency peak current mode control architecture for fast loop transient response. The device uses internal compensationor an external Type-II compensation to optimize performance and stabilize the loop. The ISL73006SLH has an internally configured switching frequency of 500kHz. . The ISL73006SLH integrates high-side (P-channel) and low-side (N-channel) power FETs. There are options for external or internal compensation and slope control that can be implemented with a minimum of external components reducing the BOM count and design complexity. The ISL73006SLH includes a comprehensive suite of operational features and protections, including preset undervoltage, overvoltage, overcurrent protections, power-good, soft-start, and over-temperature. The ISL73006SLH operates across the temperature range of -55°C to +125°C and is available in a 10-lead ceramic dual in-line flat package (CDFP) and die form. Applications ▪ Low Power Auxiliary Rails for FPGAs, DSPs, CPUs, and ASICs Features ▪ Qualified to Renesas Rad Hard QML-V Equivalent Screening and QCI Flow (R34TB0001EU) • All screening and QCI is in accordance with MIL-PRF-38535 Class-V ▪ Input Bias Voltage • 3V to 18V ▪ Internal or external loop compensation ▪ 1% reference voltage over-temperature and radiation ▪ Positive and negative overcurrent, over/undervoltage, and over-temperature protections ▪ High 500kHz efficiency ~95% from 0.4A to 1A ▪ Adjustable slope compensation ▪ TID Rad Hard Assurance (RHA) wafer-by-wafer testing • LDR (0.01rad(Si)/s): 75krad(Si) ▪ SEE Characterization • No DSEE for VIN = 16.5 and 86MeV•cm2/mg • SEFI <10µm2 at 86MeV•cm2/mg • SET <2.5% on VOUT at 86MeV•cm2/mg Figure 1. External Compensation Application Diagram for 12V to 3.3V 10 9 8 7 6 1 2 3 4 5 PGND PVIN EN VCC SLOPE LX PG SGND COMP FB + 15µH 44µF 4.7nF 12k 10k 2.21k 44µF 2.2µF 40.7k 10k ISL73006SLH Radiation Hardened 18V, 1A Point-of-Load Regulator |
