ISL73006SLHDEMO2Z Datasheet(PDF) 2 Page - Renesas Technology Corp

Part # ISL73006SLHDEMO2Z
Description  Radiation Hardened 18V, 1A Point-of-Load Regulator
PDF  31 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  RENESAS [Renesas Technology Corp]
Direct Link  http://www.renesas.com
Logo RENESAS - Renesas Technology Corp

ISL73006SLHDEMO2Z Datasheet(HTML) 2 Page - Renesas Technology Corp

  ISL73006SLHDEMO2Z Datasheet HTML 1Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 2Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 3Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 4Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 5Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 6Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 7Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 8Page - Renesas Technology Corp ISL73006SLHDEMO2Z Datasheet HTML 9Page - Renesas Technology Corp Next Button
Zoom Inzoom in Zoom Outzoom out
 2 / 31 page
background image
R34DS0034EU0101 Rev.1.01
Page 2
Mar 13, 2024
ISL73006SLH Datasheet

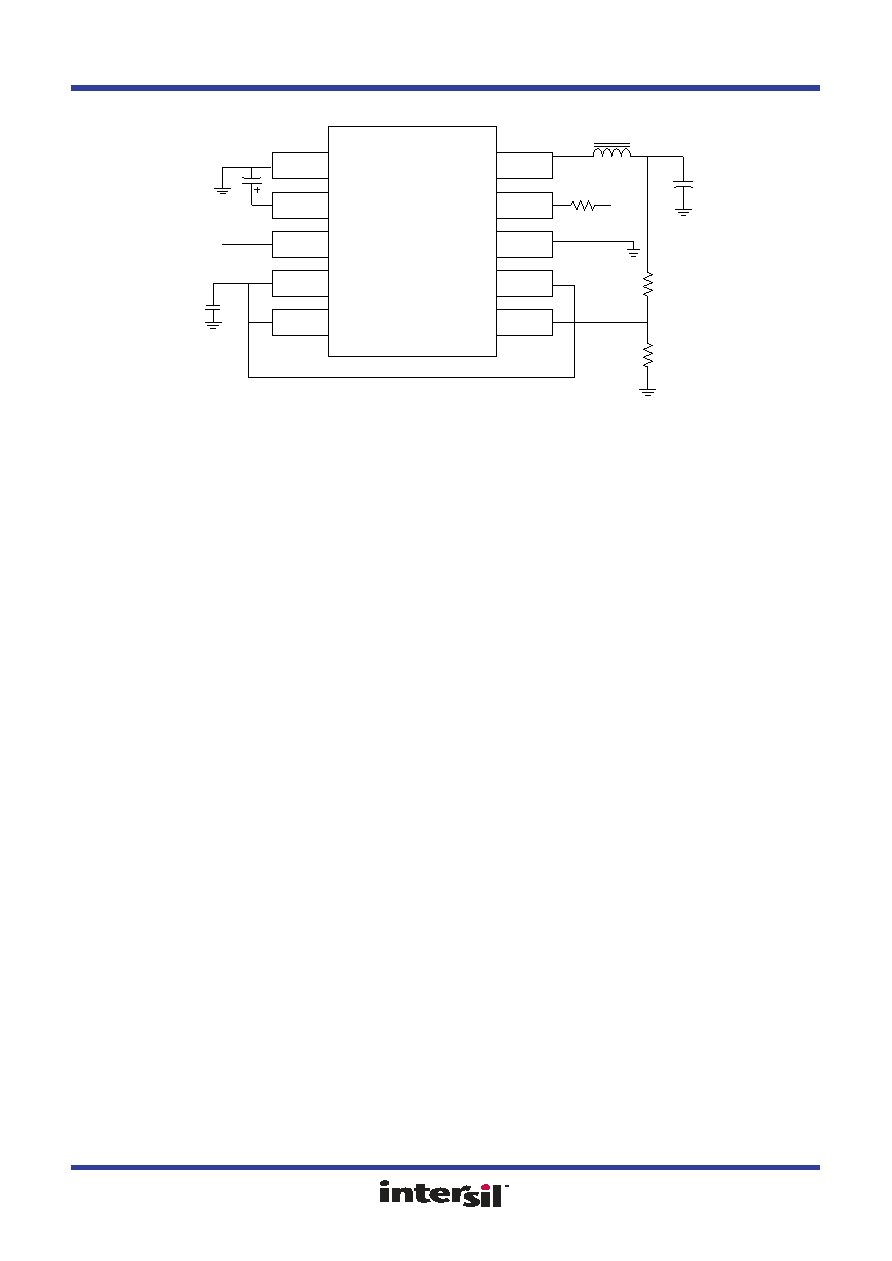

Figure 2. Internal Compensation Application Diagram for 5V to 1.2V
